REAR DRIVE CONVERSION KIT 6 SPEED STI USDM TY85

This Subarugears Rear drive conversion kit will convert your 6 Speed STI AWD transmission to a 2WD transaxle suitable for rear engine use.

Includes :

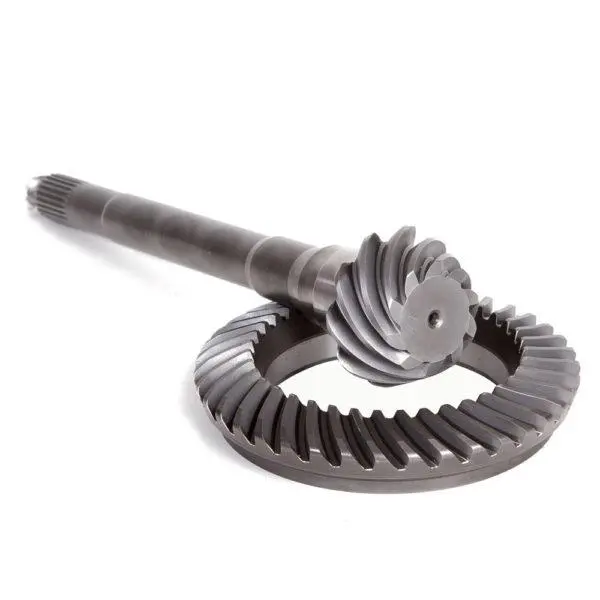

• Reversed 6Sti ring & pinion 2WD Hi-power

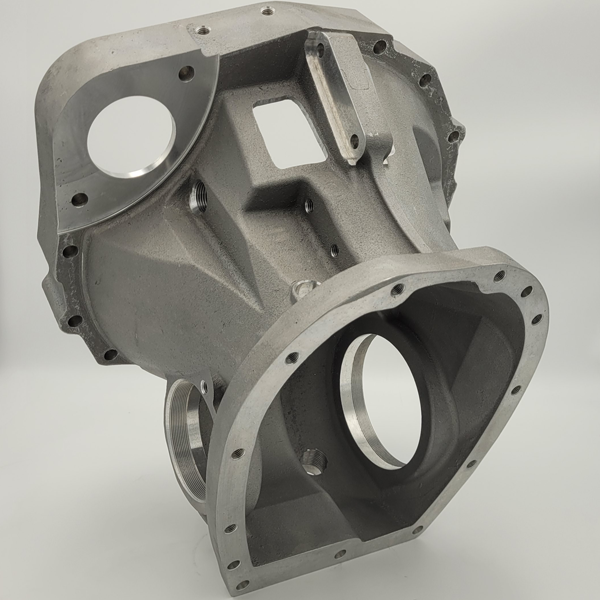

• Cast reversed 6Sti bellhsouing
• Billet rear plate, Bolts to the 6STi TY85 housing to close up the 6Sti TY85 transaxle and cover the shift rod.
• 2WD locking spool, Locking spool & retainer to lock any 6Sti TY85 transaxle into 2WD. Includes provision to fit oil pump drive gear and circlip for oil pump models.
• Pinion shaft lock,
• Pop-in stub axles with clips, Use Subastub axles new style on late TY754 and onwards transmissions that originally had one-piece pop in/out CV joint/stub axle combination. Use with stock open differential or our Subadiff torsen LSD in order to assemble Subaflanges to your transaxle.
• Subaflanges with pins.

Note : Our 930 Subaflanges have 3/8″-24 threads.

Suitable for all TY85 Sti 6 speeds – oil pump models and no oil pump models.

Total length of shortened transmission is 735mm.
